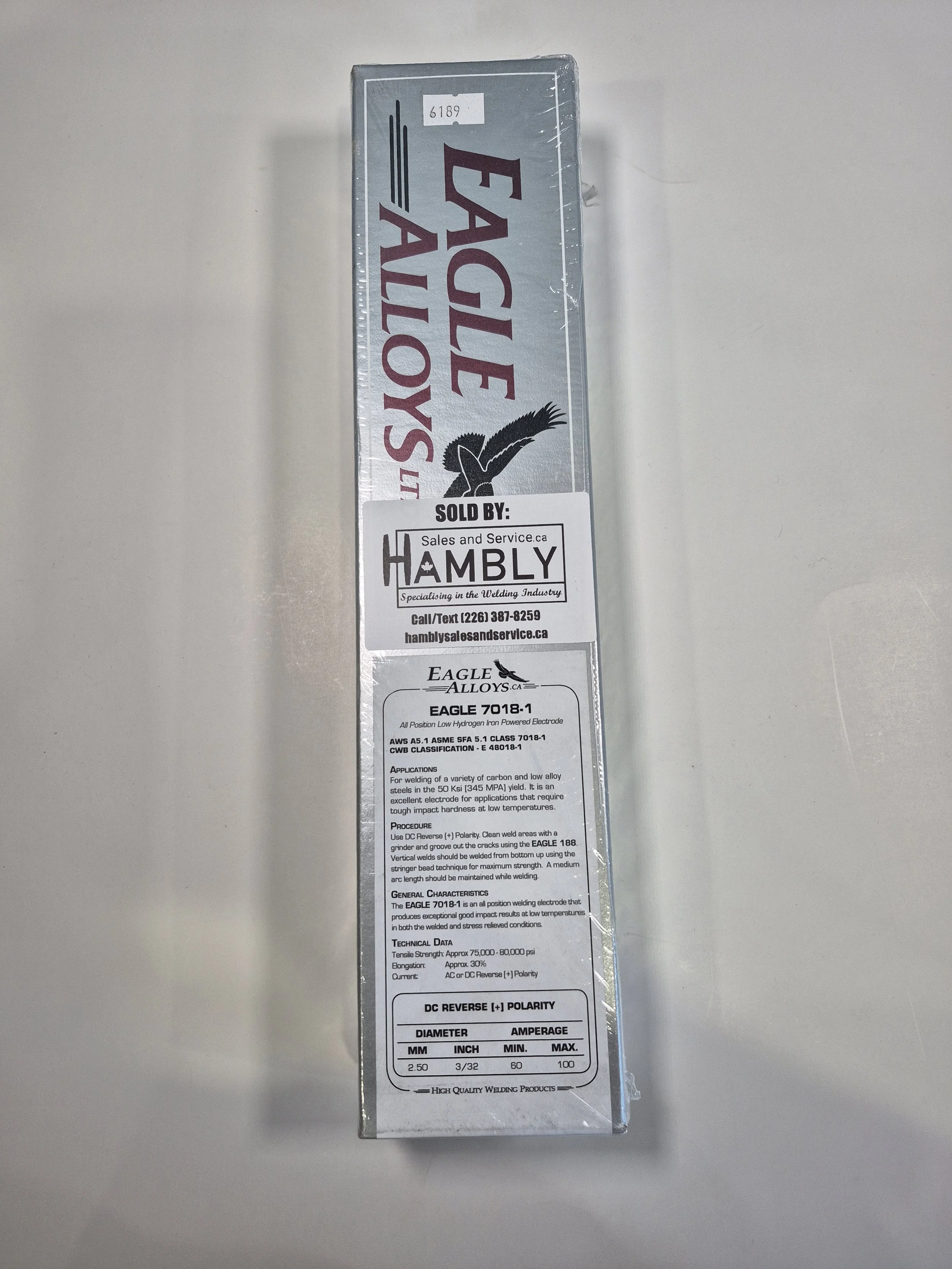

AWS AF.1 ASME SFA 5.1 CLASS 7018-1
CWB CLASSIFICATION - E 48018-1
APPLICATIONS
For welding a variety of carbon and low alloy steels in the 50 Ksi (345 MPA) yield. It is an excellent electrode for applications that require tough impact hardness at low temperatures.
PROCEDURE
Use DC Reverse (+) Polarity. Clean weld areas with a grinder and groove out the cracks using the EAGLE 188. Vertical welds should be welded from bottom up using the stringer bead technique for maximum strength. A medium arc length should be maintained while welding.
GENERAL CHARACTERISTICS
The EAGLE 7018-1 is an all position welding electrode that produces exceptional good impact results at low temperatures in both the welded and stress relieved conditions.
TECHNICAL DATA
Tensile Strength: Approx. 75,000 - 80,000 psi
Elongation: Approx. 30%
Current: AC or DC REverse (+) Polarity
DC REVERSE (+) POLARITY

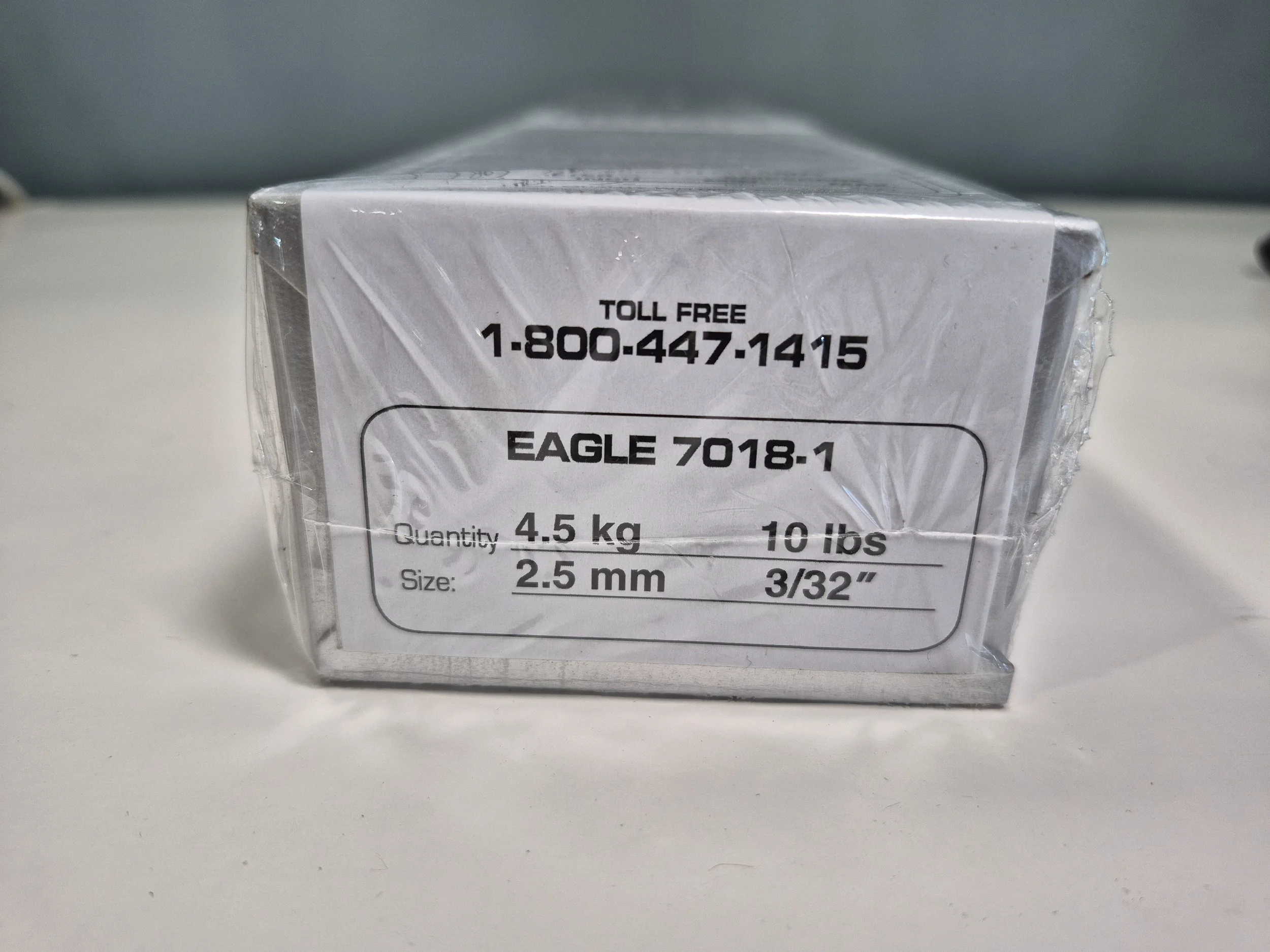

Diameter: 2.50mm 3/32”
Amperage: Min. 60 Max 100
AWS AF.1 ASME SFA 5.1 CLASS 7018-1
CWB CLASSIFICATION - E 48018-1
APPLICATIONS
For welding a variety of carbon and low alloy steels in the 50 Ksi (345 MPA) yield. It is an excellent electrode for applications that require tough impact hardness at low temperatures.
PROCEDURE
Use DC Reverse (+) Polarity. Clean weld areas with a grinder and groove out the cracks using the EAGLE 188. Vertical welds should be welded from bottom up using the stringer bead technique for maximum strength. A medium arc length should be maintained while welding.
GENERAL CHARACTERISTICS
The EAGLE 7018-1 is an all position welding electrode that produces exceptional good impact results at low temperatures in both the welded and stress relieved conditions.
TECHNICAL DATA
Tensile Strength: Approx. 75,000 - 80,000 psi
Elongation: Approx. 30%
Current: AC or DC REverse (+) Polarity
DC REVERSE (+) POLARITY
Diameter: 2.50mm 3/32”
Amperage: Min. 60 Max 100
